Synthesis of 60 and 96 Decibel Amplifiers
(A Human-Competitive Result Produced by Genetic Programming)

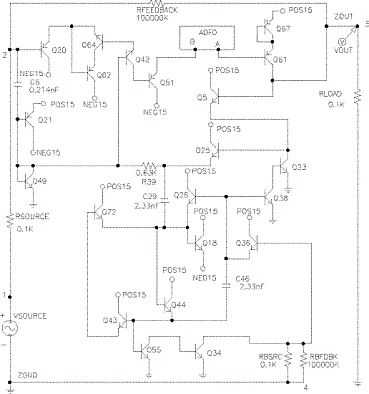

Genetic programming evolved 60 dB and 96 dB amplifier circuits (and other amplifiers) as described in Section 45.3 of Genetic Programming III: Darwinian Invention and Problem Solving (Koza, Bennett, Andre, and Keane 1999). Chapter 46 demonstrates the evolution of a 40 dB amplifier with a high power supply rejection ratio and Chapters 42 and 43 demonstrate the evolution of a 10 dB and a 39 dB amplifier, respectively.
The task of designing an amplifier is known to be nontrivial. Hundreds of patents for amplifiers have been issued over the years. Harold S. Black (who invented the negative feedback amplifier in 1927) received numerous patents for amplifiers. In particular, Black received two early and fundamental patents on amplifiers in 1935 and 1937 (Black 1935, 1937).
Referring to the eight criteria in chapter 1 of Genetic Programming III: Darwinian Invention and Problem Solving (Koza, Bennett, Andre, and Keane 1999) for establishing that an automatically created result is competitive with a human-produced result, the automatic synthesis of the Zobel filter circuit satisfies the following two criteria:
(A) The result was patented as an invention in the past, is an improvement over a patented invention, or would qualify today as a patentable new invention.
(F) The result is equal to or better than a result that was considered an achievement in its field at the time it was first discovered.
Black, Harold S. 1935. Wave Translation System. U.S. Patent 2,003,282. Filed August 8, 1928. Issued June 4, 1935.
Black, Harold S. 1937. Wave Translation System. U.S. Patent 2,102,670. Filed August 8, 1928. Issued December 21, 1937.
Black, Harold S. 1977. Inventing the negative feedback amplifier. IEEE Spectrum. December 1977. pp.55-60.
Koza, John R., Bennett III, Forrest H, Andre, David, and Keane, Martin A. 1999a. Genetic Programming III: Darwinian Invention and Problem Solving. San Francisco, CA: Morgan Kaufmann.
