Synthesis of a Low-Voltage Balun Circuit
(A Human-Competitive Result Produced by Genetic Programming)
Genetic programming evolved the topology and sizing of a low-voltage balun circuit as described in Section 15.4.1of Genetic Programming IV: Routine Human-Competitive Machine Intelligence (Koza, Keane, Streeter, Mydlowec, Yu, and Lanza 2003).
This genetically evolved circuit is one of six genetically evolved circuits that duplicate the functionality of a circuit patented after January 1, 2000, as described in Chapter 15 of Genetic Programming IV: Routine Human-Competitive Machine Intelligence (Koza, Keane, Streeter, Mydlowec, Yu, and Lanza 2003).
This genetically evolved circuit duplicates the functionality of the low-voltage balun circuit that was patented by Sang Gug Lee of the Information and Communications University in 2001.
Lee (2001) identifies the essence of his 2001 invention in the patent documents. The essential difference between Lee’s invention and the prior art is a coupling capacitor C2 located between the base and the collector of the transistor Q2. As Lee (2001) explains,
“The structure of the inventive balun circuit… is identical to that of [the prior art] except that a capacitor C2 is further provided thereto. The capacitor C2 is a coupling capacitor disposed between the base and the collector of the transistor Q2 and serves to block DC components which may be fed to the base of the transistor Q2 from the collector of the transistor Q2.” (Emphasis added.)

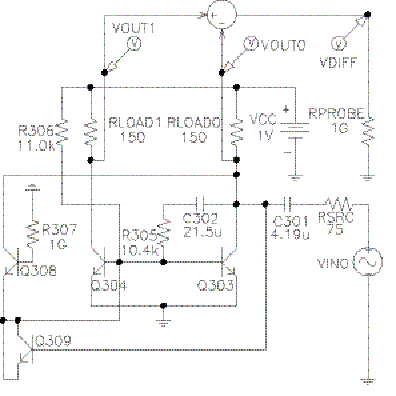

The genetically evolved circuit possesses the very feature that Lee identifies as the essence of his invention, namely the second capacitor C2 (called “C302” in the figure above).
Referring to the eight criteria in table 1.2 of Genetic Programming IV: Routine Human-Competitive Machine Intelligence (Koza, Keane, Streeter, Mydlowec, Yu, and Lanza 2003) for establishing that an automatically created result is competitive with a human-produced result, this genetically evolved result satisfies the first of the eight criteria:
(A) The result was patented as an invention in the past, is an improvement over a patented invention, or would qualify today as a patentable new invention.
Koza, John R., Keane, Martin A., Streeter, Matthew J., Mydlowec, William, Yu, Jessen, and Lanza, Guido. 2003. Genetic Programming IV: Routine Human-Competitive Machine Intelligence. Kluwer Academic Publishers.
Lee, Sang Gug. 2001. Low Voltage Balun Circuit. U.S. patent 6,265,908. Filed December 15, 1999. Issued July 24, 2001.
