Synthesis of Analog Computational Circuits
(A Human-Competitive Result Produced by Genetic Programming)

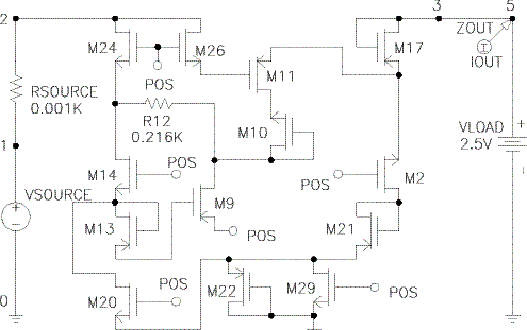

Genetic programming evolved analog computational circuits for squaring, cubing, square root, cube root, and logarithm as described in Chapter 47 of Genetic Programming III: Darwinian Invention and Problem Solving (Koza, Bennett, Andre, and Keane 1999). In addition to the above five computational circuits, a circuit for the Gaussian function is created in Chapter 51 using MOSFET semiconductor technology.
The problem of designing analog computational circuits for specified mathematical functions is recognized as being exceedingly difficult. Dozens of computational circuits have been patented, including square root circuits (Newbold 1962; Schlatter 1973), logarithmic circuits (Green 1958; Platzer 1965; Gilbert 1991), and multiplier circuits (Gilbert 1979).
Referring to the eight criteria in chapter 1 of Genetic Programming III: Darwinian Invention and Problem Solving (Koza, Bennett, Andre, and Keane 1999) for establishing that an automatically created result is competitive with a human-produced result, the automatic synthesis of analog computational circuits for the squaring, cubing, square root, cube root, logarithm, and Gaussian functions satisfies the following three criteria:
(A) The result was patented as an invention in the past, is an improvement over a patented invention, or would qualify today as a patentable new invention.
(D) The result is publishable in its own right as a new scientific result (independent of the fact that the result was mechanically created).
(G) The result solves a problem of indisputable difficulty in its field.
Gilbert, Barrie.. 1979. Multiplier Circuit. U.S. Patent 4,156,283. Filed October 3, 1977. Issued May 22, 1979.
Gilbert, Barrie. 1991. Logarithmic Amplifier. U.S. Patent 4,990,803. Filed March 27, 1989. Issued February 5, 1991.
Green, Milton. 1958. Logarithmic Converter Circuit. U.S. Patent 2,861,182. Filed June 16, 1953. Issued November 18, 1958.
Koza, John R., Bennett III, Forrest H, Andre, David, and Keane, Martin A. 1999a. Genetic Programming III: Darwinian Invention and Problem Solving. San Francisco, CA: Morgan Kaufmann.
Newbold, William F. 1962. Square Root Extracting Integrator. U.S. Patent 3,016,197. Filed September 15, 1958. Issued January 9, 1962.
Platzer, George E. 1965. Logarithmic Multiplier-Divider. U.S. Patent 3,197,626. Filed January 8, 1962. Issued July 27, 1965.
Schlatter, Gerald Lance. 1973. Analog Multiplier and Square Root Extractor Having a Plurality of Strain Gages Connected in a Bridge Circuit. U.S. Patent 3,732,406. Filed July 8, 1971. Issued May 8, 1973.
