Synthesis of Topology for a PID (Proportional, Integrative, and Derivative) Controller



(A Human-Competitive Result Produced by Genetic Programming)



The Result

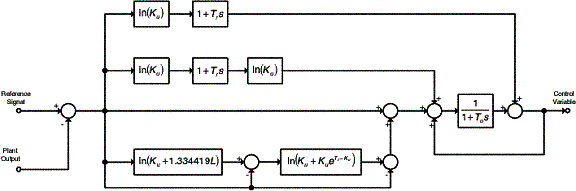

Genetic programming evolved a PID (proportional, integrative, and derivative) controller for two families of plants as described in Section 9.2 of Genetic Programming IV: Routine Human-Competitive Machine Intelligence (Koza, Keane, Streeter, Mydlowec, Yu, and Lanza 2003).

BBB2280

Basis for Claim of Human-Competitiveness

The PID controller was patented in 1939 by Albert Callender and Allan Stevenson of Imperial Chemical Limited of Northwich, England (Callender and Stevenson 1939). The PID controller was an enormous improvement over previous manual and automatic methods for control.

The genetically evolved controller has the essential features of, and infringes, the Callender and Stevenson patent (1939).

Referring to the eight criteria in table 1.2 of Genetic Programming IV: Routine Human-Competitive Machine Intelligence (Koza, Keane, Streeter, Mydlowec, Yu, and Lanza 2003) for establishing that an automatically created result is competitive with a human-produced result, the rediscovery by genetic programming of a controller that infringes the claims of the 1939 Callender and Stevenson patent satisfies the following two of the eight criteria:

(A) The result was patented as an invention in the past, is an improvement over a patented invention, or would qualify today as a patentable new invention.

(F) The result is equal to or better than a result that was considered an achievement in its field at the time it was first discovered.

The rediscovery by genetic programming of the PID controller came about six decades after Callender and Stevenson received a patent for their invention. Nonetheless, the fact that the original human-designed version satisfied the criteria for patent-worthiness of both the British and U.S. Patent Offices means that the genetically evolved duplicate would also have satisfied the criteria for patent-worthiness (if only it had arrived earlier than the patent application by Callender and Stevenson).

References

Callender, Albert and Stevenson, Allan Brown. 1939. Automatic Control of Variable Physical Characteristics. U.S. patent 2,175,985. Filed February 17, 1936 in the United States. Filed February 13, 1935 in Great Britain. Issued October 10, 1939 in the United States.

Koza, John R., Keane, Martin A., Streeter, Matthew J., Mydlowec, William, Yu, Jessen, and Lanza, Guido. 2003. Genetic Programming IV: Routine Human-Competitive Machine Intelligence. Kluwer Academic Publishers.
